Roof sheeting · Corrugated
Corrugated roof sheets: sizes, dimensions and prices
The classic Australian roof. Rolled to your exact lengths in COLORBOND® Standard, Matt and Ultra, ZINCALUME® and galvanised steel, and ready to collect or deliver from Coombabah.
- Rolled to order
- Ready in two business days
- Pick up or delivery
Profile dimensions
Corrugated dimensions at a glance.

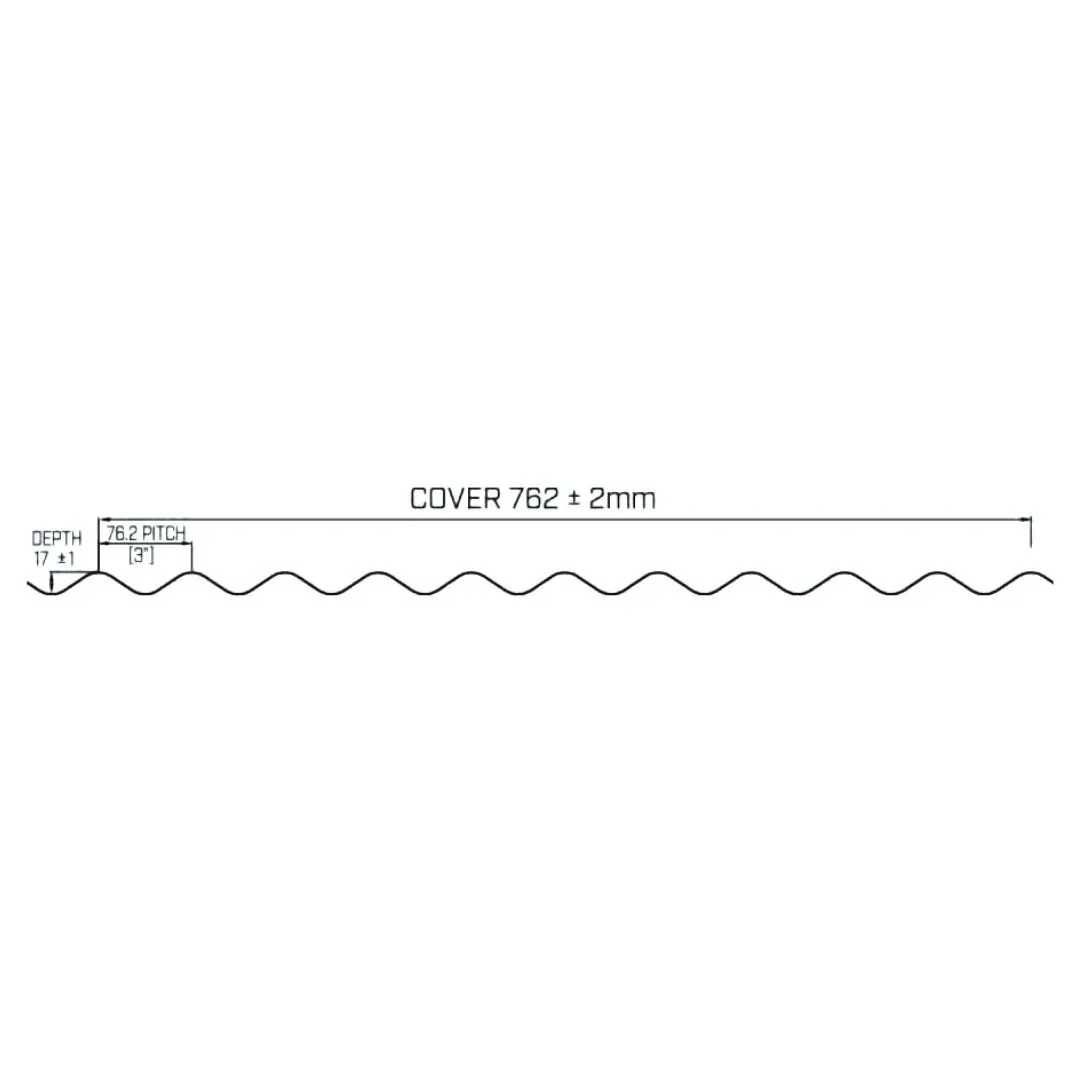

A corrugated roof sheet covers 762 mm of roof width. The corrugations are 17 mm deep at a 76.2 mm (three-inch) pitch, and sheets are cut to any length up to 10,000 mm.
| Effective cover width | 762 mm (± 2 mm) |
|---|---|
| Corrugation depth | 17 mm (± 1 mm) |
| Corrugation pitch | 76.2 mm (3 inches) |
| Base metal thickness (BMT) | 0.42 mm or 0.48 mm COLORBOND®; 0.42 mm ZINCALUME® and galvanised |
| Minimum roof pitch | 5° (approximately 1 in 12) |
| Lengths | Cut to any length up to 10,000 mm per sheet. We deliver sheets up to 8,000 mm; delivery of longer sheets is quoted separately before dispatch. |
| Finishes | COLORBOND® Standard, Matt and Ultra; ZINCALUME®; galvanised |
Where it works
Roofs, walls and everything between.
- Homes, heritage and Queenslander roofs
- Patios, carports and pergolas
- Sheds and outbuildings
- Walls, fences and feature cladding
Corrugated is the most recognisable roof profile in Australia and suits almost any building, from a heritage home to a modern extension. Its rounded waves soften the look of a large roof and hide minor undulations in the framing.
Our corrugated sheets are rolled from 100 per cent Australian-made COLORBOND® steel, or supplied in ZINCALUME® and galvanised. Barge, ridge and apron flashings are made to match in the same colour.
Need matching trims? Draw a flashing and get an instant price, or add gutter and fascia in the same colour.
Configure and order
Choose a colour, enter your lengths, see the price.
Corrugated is selected for you. Enter each sheet length, or use the By area tab to work out the sheets from your building size.
Lengths and quantities
Enter each sheet length in millimetres. Delivered sheets are limited to 8,000 mm; delivery of longer sheets is quoted separately and is an additional cost.
Not sure of your lengths? Switch to and enter the shape of your roof or wall.
Live quote
Corrugated, Colorbond Standard
0.42mm · Surfmist
Cut to your exact lengths · ready within two business days
Trimdek® and Spandek® are trade marks of Lysaght. Our 5 Rib and 9 Rib sheets are equivalent profiles supplied by Roofing Depot and are not manufactured by Lysaght. COLORBOND® and ZINCALUME® are registered trade marks of BlueScope Steel Limited.
Common questions
Corrugated: common questions.
What size are corrugated roof sheets?
Each sheet covers 762 mm of roof width, with 17 mm deep corrugations at a 76.2 mm pitch. There is no standard length: we cut every sheet to the length you need, up to 10,000 mm.
How many corrugated sheets do I need?
Measure the roof along the gutter in millimetres and divide by 762, then round up. A 4,000 mm wide patio needs 4,000 ÷ 762 = 5.2, so 6 sheets. The By area tab in the configurator below works this out from your building size.
What colours are available?
The full COLORBOND® standard palette, plus Matt and Ultra, along with ZINCALUME® and galvanised. The colour chips in the configurator show the real range for each finish.
0.42 or 0.48 BMT?
0.42 mm is the standard for most homes, patios and sheds. 0.48 mm is stiffer and better for wider batten spacing, commercial buildings and areas with foot traffic.
Can I buy 4 m colorbond sheets?
Yes. Enter 4,000 mm as the length and choose your colour; every sheet is cut to the length you enter, so there is no waste from standard sizes.
