Roof sheeting · 9 Rib
9 Rib roof sheeting (Spandek-style): profile dimensions and prices
Sharp, closely spaced trapezoidal ribs for a strong, modern roof or wall. Rolled to order in your lengths in COLORBOND® Standard, Matt and Ultra and ZINCALUME®.
- Rolled to order
- Ready in two business days
- Pick up or delivery
Profile dimensions
9 Rib (Spandek-style) dimensions at a glance.

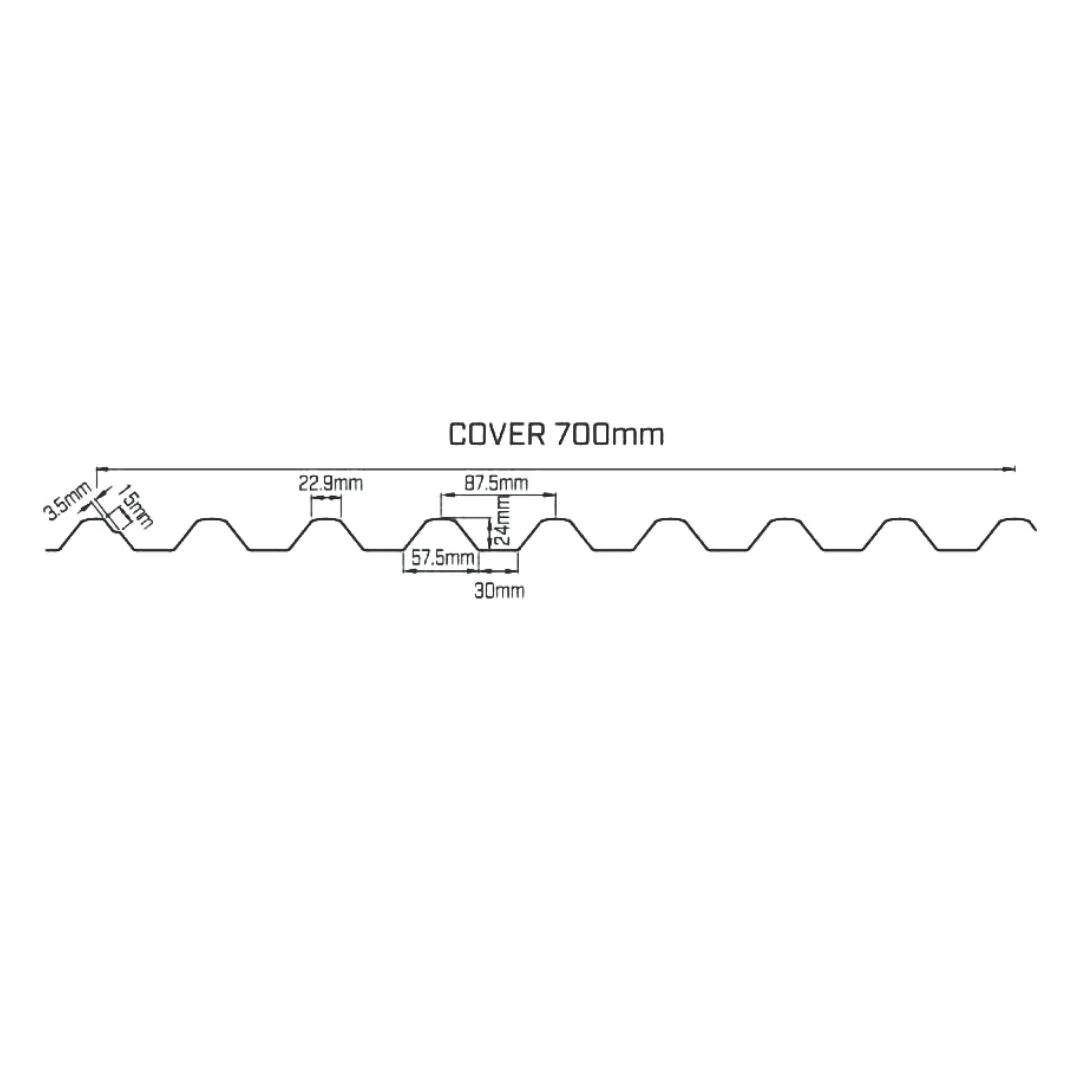

A 9 Rib (Spandek-style) sheet covers 700 mm of roof width. Its trapezoidal ribs are 24 mm high, spaced 87.5 mm apart, and 22.9 mm across the top.
| Effective cover width | 700 mm |
|---|---|
| Rib height | 24 mm |
| Rib spacing (centre to centre) | 87.5 mm |
| Rib width at top | 22.9 mm |
| Base metal thickness (BMT) | 0.42 mm or 0.48 mm COLORBOND®; 0.42 mm ZINCALUME® |
| Minimum roof pitch | 1° (approximately 1 in 50) |
| Lengths | Cut to any length up to 10,000 mm per sheet. We deliver sheets up to 8,000 mm; delivery of longer sheets is quoted separately before dispatch. |
| Finishes | COLORBOND® Standard, Matt and Ultra; ZINCALUME® |
Where it works
Roofs, walls and everything between.
- Low-pitch skillion roofs
- Commercial and industrial buildings
- Modern homes and extensions
- Wall cladding
9 Rib has a bold, architectural look and, because its ribs sit close together, it is strong for its weight. It is a popular choice for low-pitch skillion roofs and for wall cladding where a sharper line is wanted.
It is an equivalent profile to Lysaght Spandek®, supplied by Roofing Depot on the Gold Coast. Flashings, cappings and barges are made to match in the same colour.
Need matching trims? Draw a flashing and get an instant price, or add gutter and fascia in the same colour.
Configure and order
Choose a colour, enter your lengths, see the price.
9 Rib (Spandek-style) is selected for you. Enter each sheet length, or use the By area tab to work out the sheets from your building size.
Lengths and quantities
Enter each sheet length in millimetres. Delivered sheets are limited to 8,000 mm; delivery of longer sheets is quoted separately and is an additional cost.
Not sure of your lengths? Switch to and enter the shape of your roof or wall.
Live quote
9 Rib Sheets (similar to Spandek), Colorbond Standard
0.42mm · Surfmist
Cut to your exact lengths · ready within two business days
Trimdek® and Spandek® are trade marks of Lysaght. Our 5 Rib and 9 Rib sheets are equivalent profiles supplied by Roofing Depot and are not manufactured by Lysaght. COLORBOND® and ZINCALUME® are registered trade marks of BlueScope Steel Limited.
Common questions
9 Rib (Spandek-style): common questions.
What are the dimensions of a Spandek-style 9 Rib sheet?
Cover width 700 mm, rib height 24 mm, rib spacing 87.5 mm centre to centre and a rib top of 22.9 mm. Sheets are cut to any length up to 10,000 mm.
How many 9 Rib sheets do I need?
Measure the roof along the gutter in millimetres and divide by 700, then round up. A 6,000 mm wide roof needs 6,000 ÷ 700 = 8.6, so 9 sheets.
Is your 9 Rib the same as Spandek?
It is an equivalent profile supplied by Roofing Depot. Spandek® is a trade mark of Lysaght; our sheets are not manufactured by Lysaght.
Can 9 Rib be used on a low-pitch roof?
Yes. 9 Rib is suited to low-pitch roofs down to 1°. Very low pitches need care with end laps and flashings; ask us and we will confirm the detail for your roof.
How long does it take?
Normally ready within two business days of your order being confirmed. Collect from Coombabah or have it delivered, with freight quoted for your suburb before dispatch.
