Architectural panels
Snaplock, Standing Seam, Nailstrip and Interlocking, priced to your lengths.
Concealed-fix panels in COLORBOND®, the full Unicote® range including Lux, ZINCALUME® and galvanised steel. Choose the seam, pan width and colour, enter your lengths, and the price is live. Formed to order in 0.55 mm BMT (galvanised 0.90 mm BMT).
- 0.55 mm BMT · galvanised 0.90 mm
- All Unicote® colours
- Cut to 10,000 mm
Configure and order
Five steps from panel to price.
Select a panel type and pan width, choose the finish and colour, then enter your lengths. The price is calculated by the same pricing engine our factory uses, so the figure you see is the figure you pay.
Pan width is the visible face between seams, from 150 mm to 600 mm.
COLORBOND®
Unicote®
Unpainted
0.55 mm BMT for COLORBOND®, Unicote® and ZINCALUME® panels; 0.90 mm BMT for galvanised.
Lengths and quantities
Panels longer than 4,000 mm are made to order but we recommend 4,000 mm or less for handling and thermal movement.
Live price
Snaplock 25 mm, Colorbond Standard
265 mm pan · 0.55 mm BMT · Surfmist
Cut to your exact lengths · priced by our factory pricing engine

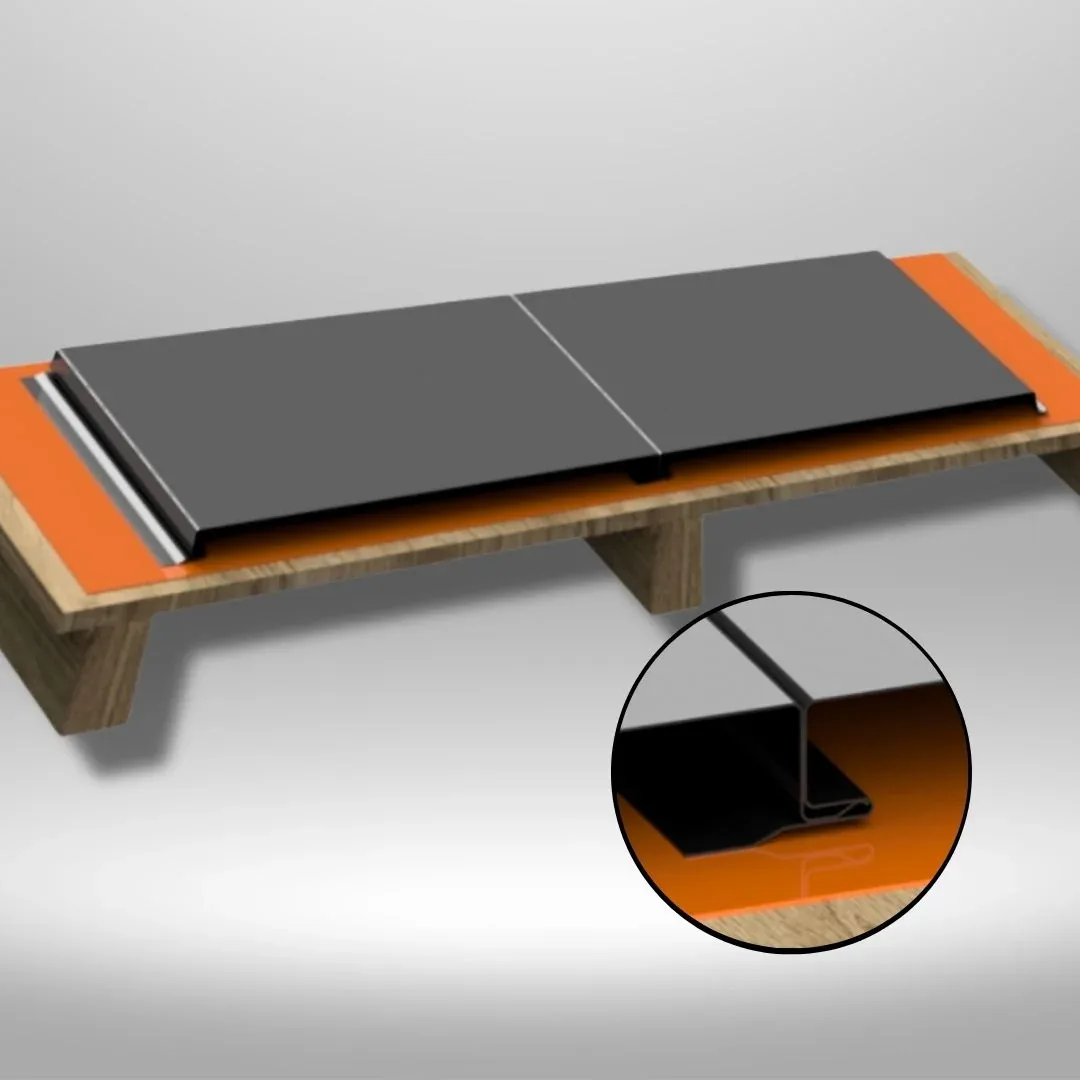

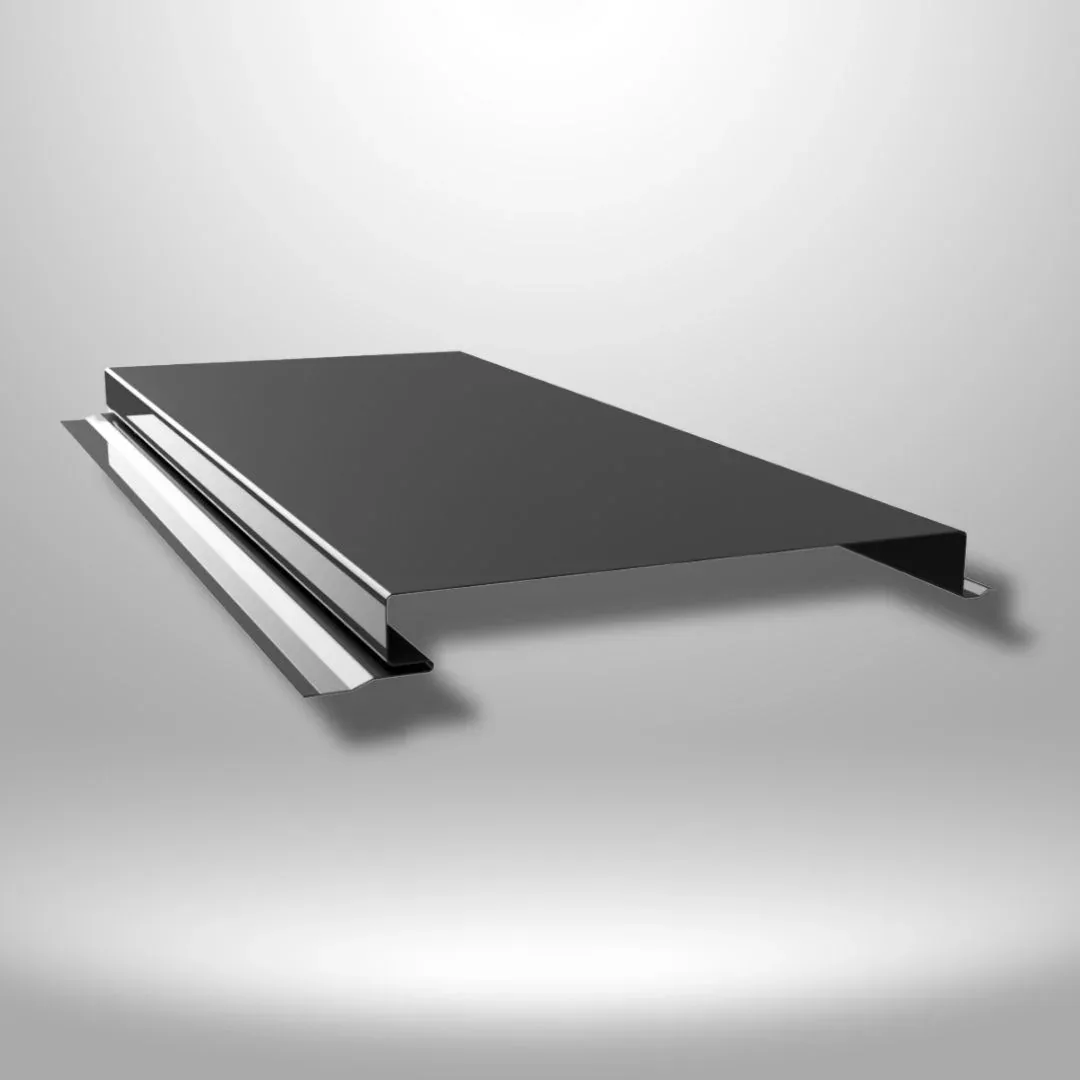

COLORBOND® and ZINCALUME® are registered trade marks of BlueScope Steel Limited. Photographs show installed Nailstrip and Interlocking panels; Snaplock and Standing Seam share the same seam heights and read very similarly once installed.
Insulated roofing
Apollo insulated roofing panels.
A roof, ceiling and insulation in one panel. Apollo insulated panels have a corrugated or Trimlink steel face bonded to a rigid insulation core with a clean underside, so a patio or shed is roofed and lined in one pass and stays cooler underneath. Panels are cut to your lengths before they arrive.
- Face profiles: Corrugated or Trimlink
- Core thickness from 50 mm to 200 mm
- Panel lengths from 2.0 m to 12.5 m, cut to size
- Manufacturing 7 to 15 business days depending on profile
Apollo panels are made to order by Apollo Patio Systems and are quoted to the project, with freight from Apollo passed on at cost. Tell us the face profile, core thickness, lengths and colour and we will come back with a written quote, normally within the business day.
Monday to Friday, 6:30am to 4:00pm. Trimlink is a profile name used by Apollo Patio Systems. Sizes, options and FAQs.
Standing seam by Euroclad
For a full standing seam roof or facade, talk to our parent company.
Roofing Depot is the trade counter of the Euroclad group. Euroclad designs, manufactures and installs complete standing seam roofing and cladding systems in steel, zinc, copper and aluminium for architectural projects across Australia. If your job is a whole building rather than a run of panels, they are the right people to call.
Roof sheeting, flashings, gutter and fascia for the same job can be ordered online so everything arrives together in the one colour. Price roof sheeting · Design a flashing · Trade accounts
Common questions
Panels, pan widths, lengths and installation.
What is the difference between Snaplock, Nailstrip and Standing Seam?

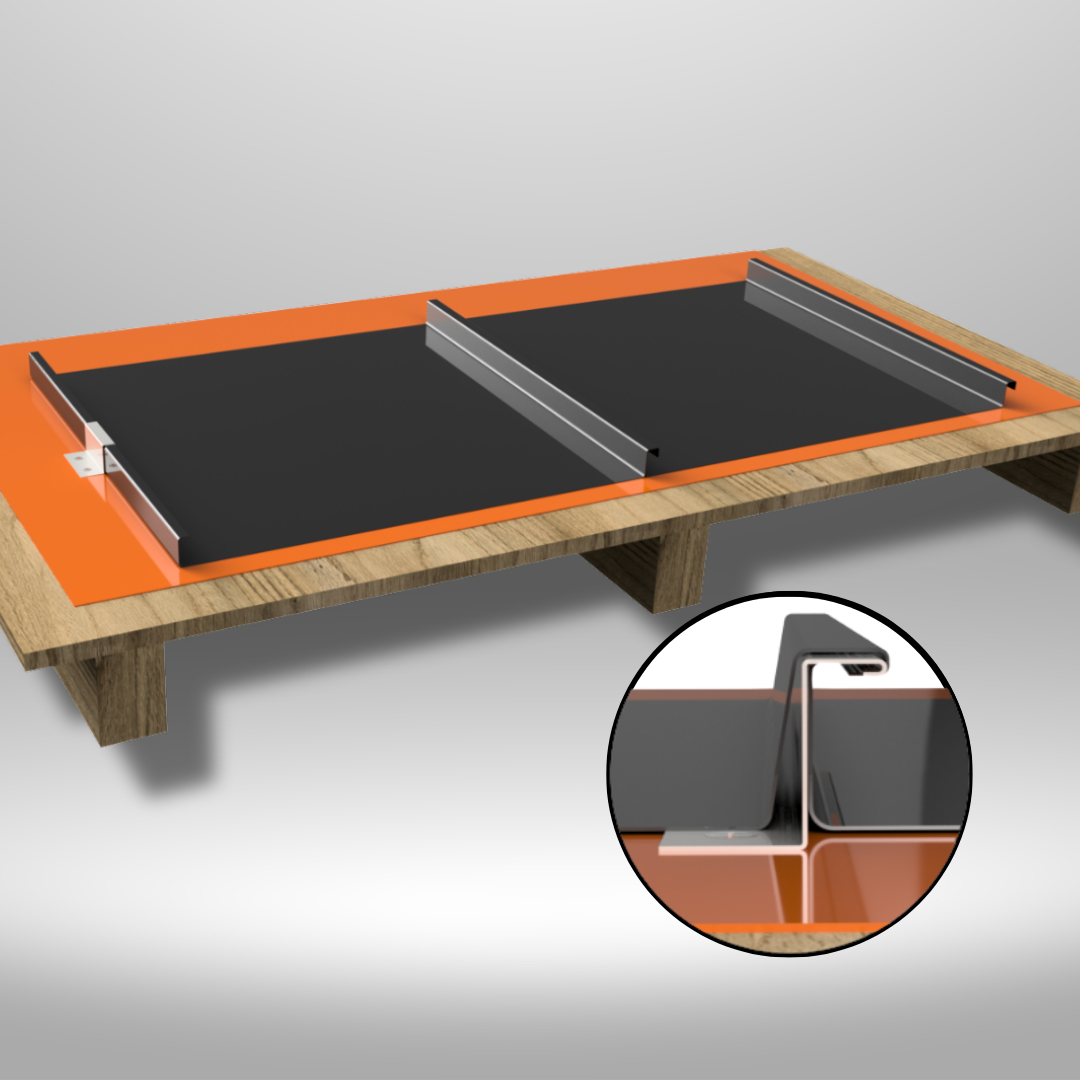

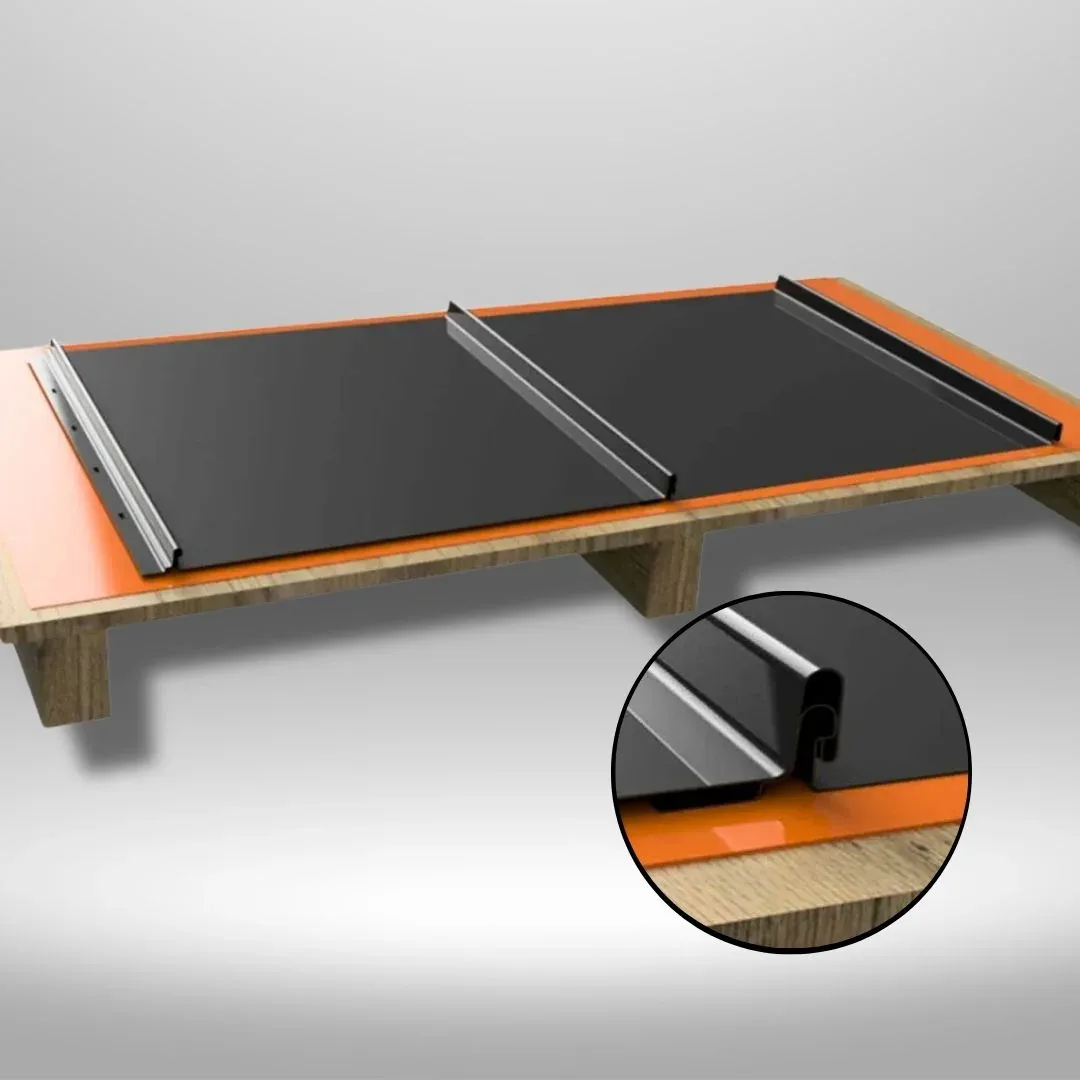

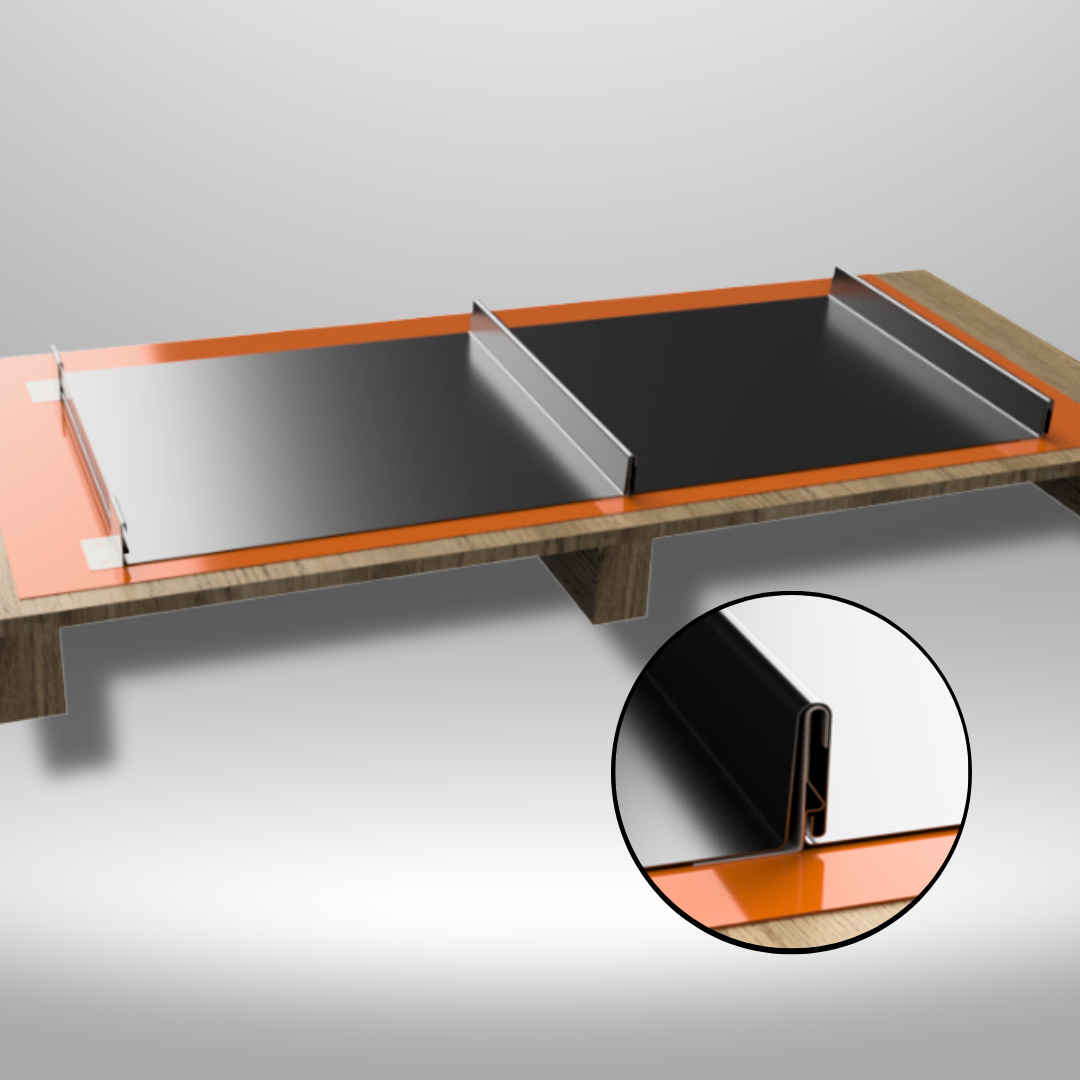

All three are concealed-fix panels with a raised seam. Nailstrip is nailed through a flange on one edge and the next pan snaps over it. Snaplock is fixed with separate clips and snaps closed, which allows for thermal movement on longer runs. Standing Seam is closed on site with a seaming tool for a traditional double-lock joint. Seam height, 25 mm or 38 mm, changes the depth of the shadow line.
What pan width should I choose?
The pan width is the visible flat face between seams. The preset widths are the most common modules for each panel and give the best yield from the coil. Any width from 150 mm to 600 mm can be entered, and the price updates as you change it. Narrower pans read as a finer, more linear facade; wider pans are more economical per square metre.
What lengths can you make?
Panels are cut to the length you enter, from 0.5 m to 10 m. We recommend 4 m or less for handling and thermal movement, particularly on dark colours and walls in full sun. Longer panels need specialised transport, so allow extra time for delivery.
Which gauge are the panels?
Painted and ZINCALUME® panels are formed from 0.55 mm base metal thickness steel, which is the standard for standing seam and interlocking cladding; galvanised panels are formed from 0.90 mm BMT. COLORBOND® and ZINCALUME® are Australian-made BlueScope steel; Unicote® is a pre-painted steel sourced from New Zealand or Korea. Other gauges and metals, including zinc, copper and aluminium, are handled by Euroclad as a supply-and-install project.
Are trims and clips included?
The price shown is for the panels alone. Snaplock clips, starter strips, corner and edge trims and flashings are made to suit each job; design matching flashings in our flashing designer or ask us to add them to your order in the same colour.
Do you install?
Roofing Depot supplies panels for installation by your own roofer or cladder. For a complete standing seam roof or facade, our parent company Euroclad designs, manufactures and installs full systems across Australia.
