Insulated roofing
Insulated roof panels: Trimlink and corrugated.
A roof, insulation and ceiling in one panel. Apollo insulated panels are cut to your lengths, so a patio or shed is roofed and lined in one pass and stays cooler underneath.
- 50 mm to 200 mm core
- Cut to length
- Written quote
Specifications
Sizes and options.
Apollo insulated roof panels come with a Trimlink or corrugated steel face over a rigid insulated core from 50 mm to 200 mm thick. Every panel is cut to your length, from 2.0 m to 12.5 m.
| Face profiles | Trimlink (5 Rib style) or Corrugated |
|---|---|
| Core thickness | 50, 75, 100, 125, 150, 175 or 200 mm |
| Panel lengths | Cut to size, 2.0 m to 12.5 m |
| Face finish | COLORBOND® steel; coastal specification available within 1 km of the ocean |
| Underside | Clean ceiling finish: roof, insulation and ceiling in one panel |
| Lay direction | Left to right or right to left, looking from the gutter to the top of the roof |
| Lead time | Normally 10 to 15 business days, made to order by Apollo Patio Systems |
| Freight | Apollo freight passed on at cost and confirmed in your quote |
Monday to Friday, 6:30am to 4:00pm. Trimlink is a profile name used by Apollo Patio Systems.
Why insulated
Cooler underneath, finished in one step.
A single-skin steel roof passes the Queensland sun straight through. An insulated panel puts a rigid core between the steel face and the space below, so patios, carports and sheds stay markedly cooler and quieter in rain, with a clean ceiling already in place.
Because each panel spans further than a standard sheet, fewer beams are needed, and the job is roofed and lined in a single pass. For a single-skin roof instead, see 5 Rib or corrugated sheeting, priced online.
Common questions
Insulated panels: common questions.
What thickness insulated roof panel do I need?
50 mm and 75 mm cores suit most patios and carports. 100 mm and thicker cores span further between beams and keep the space underneath noticeably cooler, which suits enclosed rooms and longer spans. Tell us the span and use, and we will recommend a thickness in the quote.

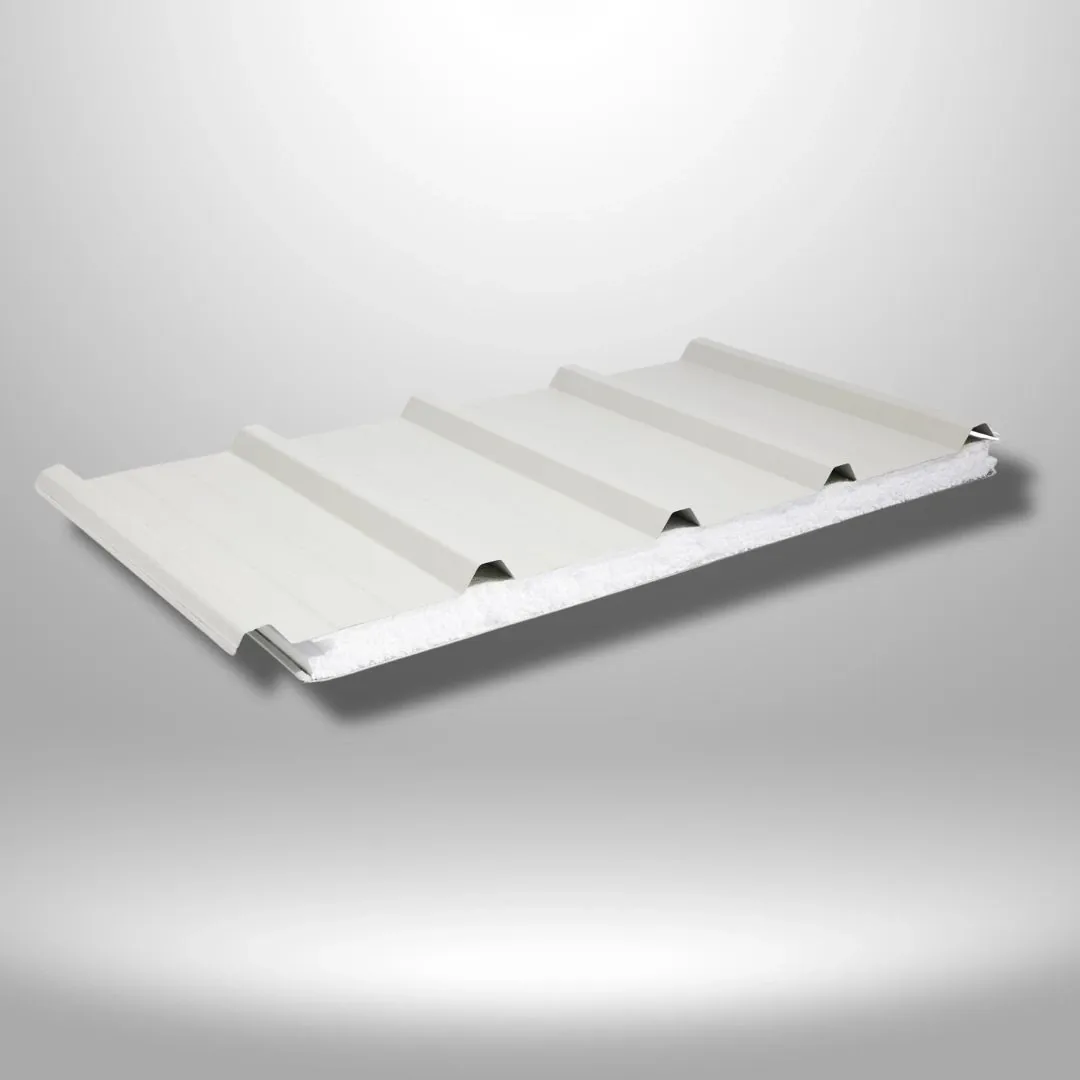

What is Trimlink?

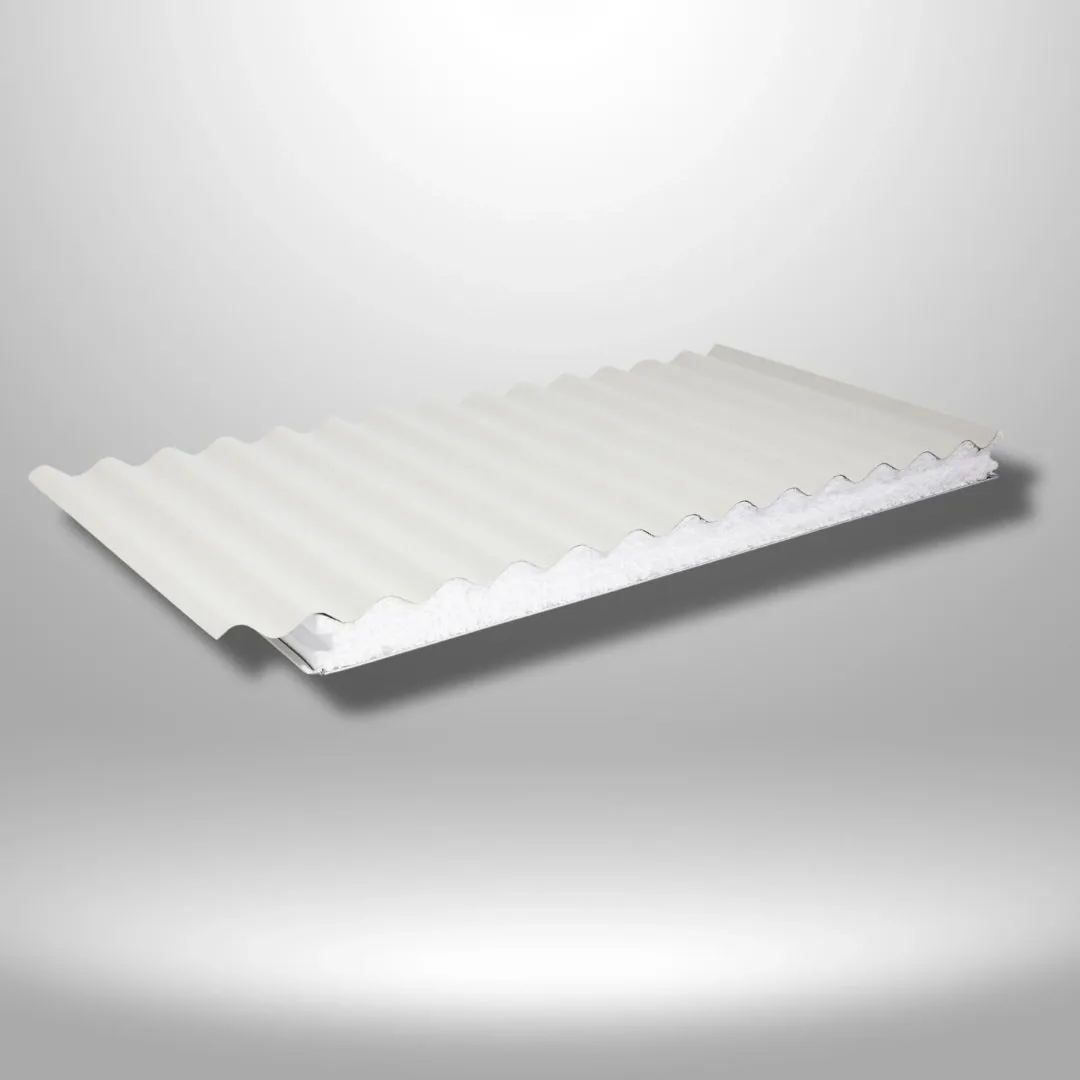

Trimlink is the name Apollo Patio Systems uses for its insulated panel with a 5 Rib (Trimdek-style) steel face. The alternative is a corrugated face. Both have the same insulated core and flat underside.
How much do insulated roof panels cost?
The price depends on the face profile, core thickness, colour, panel lengths and delivery address, so every order is quoted. Send us those details using the button on this page and we will reply with a written quote, normally within the business day.
Do you deliver insulated panels on the Gold Coast?
Yes. Panels are made to order by Apollo and delivered to site, with Apollo's freight passed on at cost. Freight is included in your quote before you commit.
Can I get matching flashings and gutters?
Yes. We make barge, apron and ridge flashings in our Coombabah factory in the same COLORBOND® colour, and supply matching gutter, fascia and downpipes.
